The TAS-PDS power data supply provides power and data for the TAS-HL114 Halogen LED fixture series. It supports input control protocols including DMX/RDM, sACN, and Art-Net, and features a 24V DC (48VDC optional) output. It utilizes a globally approved, premium PSU with a universal input range of 100-277VAC, making it suitable for nearly any application or location.

TAS-HL114 Halogen Theatrical Perform Standard
3000K-1800K Dim to Warm Recessed LED downlight

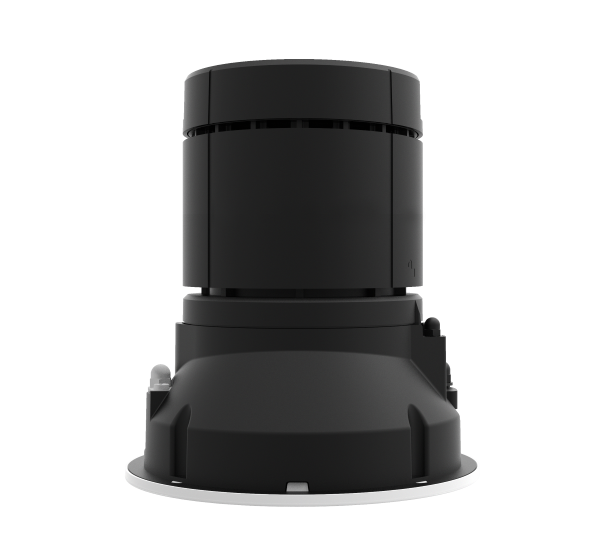

The TAS-HL114 Halogen Series is a compact, 35-watt recessed LED downlight system that incorporates professional lighting technology to deliver precise color rendering along the blackbody curve, providing high-quality light similar to natural sunlight. It is specifically designed for theaters, churches, and public venues.

One of the members of TAS family, the TAS-HL114 Classic series - RGBL (4 colors) is a much higher output luminaire choice, with a similar high-quality colors (CIE1931) in a compact size body. Which can give you an excellent dynamic color mixing out. Three types of light distribution beam angle options of narrow, medium and wide. TAS family is ideally be design as applications of accent lighting, wall washing and high grade general lighting.

Out of TAD series, Colordeve develop the FAD series which can suitable for façade applications.

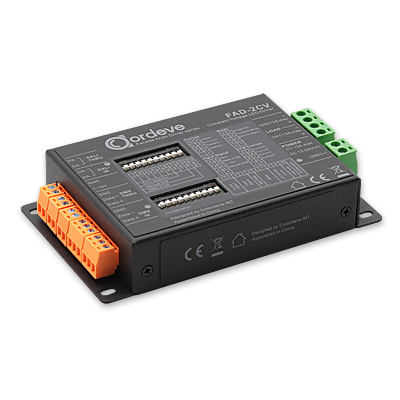

FAD-2CV is a 2 channel constant voltage driver which has most of the Colordeve TAD series technology - multi type signal input, dimming curves selection and super fine dimming resolution.

3 independent working modes for different LED fixtures, 4 CCT/DTW curves can set the color temperature curve of DT

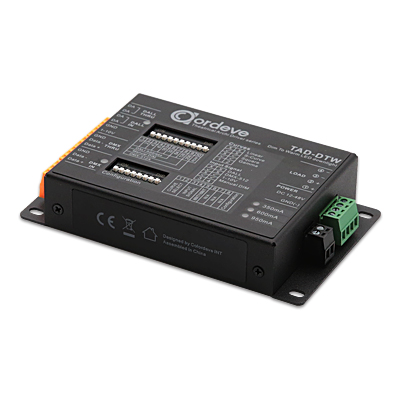

TAD-DTW(Dim to Warm) is a dual color driver which give you the mood of from red to bright up in warm white color.

Using 2 ways of output to drive the DTW fixture to become old day tungsten look.

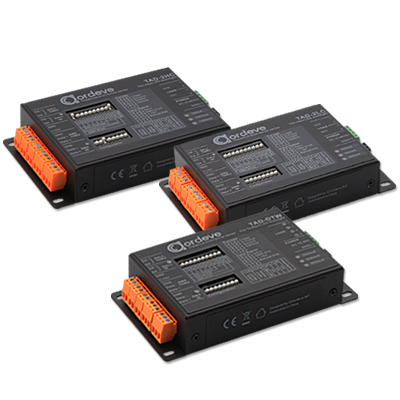

It does have the same Colordeve TAD series technology - multi type signal input, wide range of DC voltage operation, dimming curves selection and super fine dimming resolution.

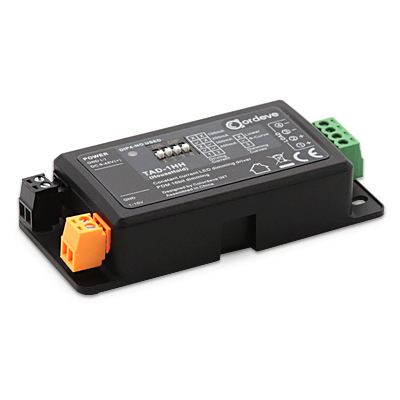

A multi input signal COB LED downlight driver with very stable output dimming fade from 0 - 100%.

Dimming curves could be selected as old day thyristor dimmer to obtain the natural tungsten visual mood.

We use the high resolution technology to get the fading performance much much better than normal 8 bit(256 steps).

2 models HC & LC can cover most of the constant driving current range.
