FEATURES

Precise Color, True Reproduction

Featuring advanced color calibration technology by Colordeve, the RGBALC (Red, Green, Deep Blue, Amber, Cyan, Lime) LED engine enables accurate and subtle color mixing. With a CRI of 98 and TLCI of 99 (both at 5600K and 3200K), it reproduces vibrant, true-to-life colors for skin-tone and objects. White light is continuously adjustable from1800K to 10,000K.

Innovative User Interface

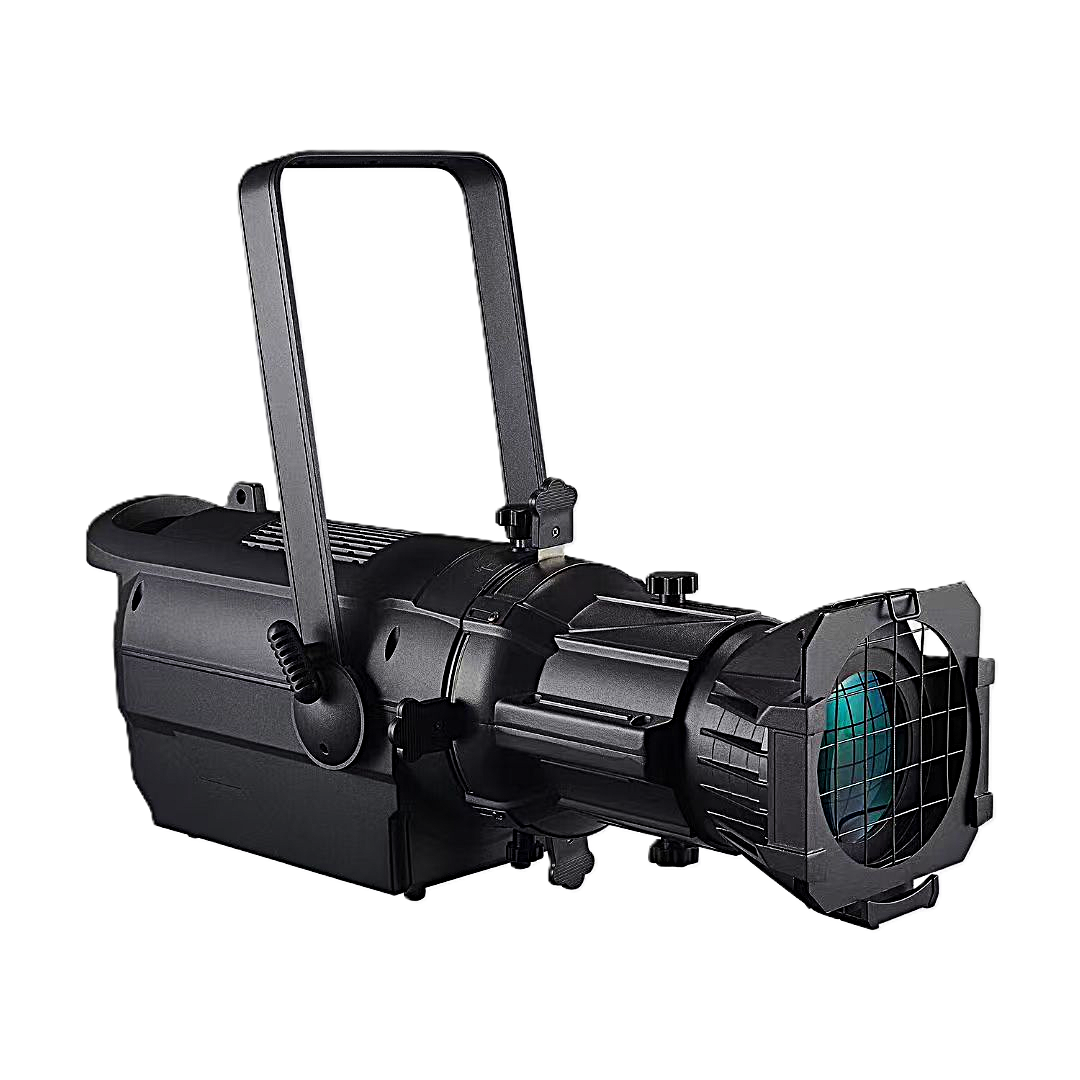

The Etron Profile 280C comes with a modern user interface and seamless control integration. Fully compatible with the DNARTS system, it provides advanced color mixing, precise color temperature matching, and an intuitive user experience. A refined 2-inch display and push-encoder allow smooth operation across multiple modes, giving professionals consistent and efficient control.

Built Tough, Easy to Maintain

A solid all-aluminum chassis and optimized thermal design provide reliable performance through out long tours and productions, reducing down time and maintenance costs. Choose from our fixed lens tube (19°/26°/36°/50°) or two zoom tube options (15 - 30° /25 - 50°). One fixture adapts to various lighting scenarios, minimizing the need for extra specialized equipment.

• Full-Spectrum RGBACL LED Engine
• High quality CCT reproduction and advanced color control
• CCT range between 1800K to 10,000K
• +/- Green adjustment and tungsten redshift simulation
• Virtual color library, color matching popular LEE and Rosco colors
• Available in both a white and full spectrum array
• 25bit perfected smooth-dimming to zero
• Flat, even field of light with superior color mixing
• USB port for history running status report filedown load & firmware upgrade
• Intuitive onboard control and user interface
• High refresh 100kHz for HD and UHD cameras
• RDM(Remote Device Management) for added flexibility
• Ultra-quiet operation and stable output over long takes

SPECIFICATION

OPTICS

Lens type: high quality glass lens optics
Available lenses:
5° Lens tube

10° Lens tube

19° Lens tube

26° Lens tube

36° Lens tube

50° Lens tube

15° -  30° zoom lens tube

25° -  50° zoom lens tube

Focus: manual

Gobo size: (B size) 60mm image

LIGHT SOURCE

Source: 250W six-color LED Array

Color Used: Deep Red, Green, Deep Blue, Amber, Cyan, Lime (Options color: Blue or Indigo and Red)
Lumens output: >6000lm
Lumens/Watt: >30.5 lm/w

CRI Average: 3200K/5600K >97

R9>95

TLCI>98

TM-30 Average: 95
LED lifetime: 50,000 hours (L70 @25 degree C)

COLOR SYSTEM
Color control:RGBACL, RGB, XY, CCT, Gel, HSI

Calibrated: Yes(factory)

Color temperature range: 1800K to 10,000K

Filament response: 750W/1kW/1.2kW/2kW/2.5kW (red shift and thermal delay during dimming)

+/- Green adjustment and emulated red-shift for precise color balance adjustments.

DYNAMI EFFECTS

Digital color gels: 154 colors

Color rainbow effect with variable speed
Strobe effects - 0.4Hz to 30Hz with a number of built in strobes, pulses, and effects
DLS(Dim Low Stabilization) imperceptioble 25 bit resolution dimming for ultra smooth fade to dark

CONTROL & CONNECTIONS

Local control panel, with full color display and 4 buttons, pushable encoder
Protocol: DMX-512A(RDM)

RDM Configuration: DMX setup, hour counter, standard &manufacturer RDM commands
DMX Maps: Single Channel 5600K/3200K, RGB mode, HSIC mode, Studio mode, Studio Color, Gel mode, XY mode, CCT-RGBL-GEL
Four dimming curves: Linear, S-Curve, Square curves and Incandescent

DMX and RDM data In / Thru through IP20 rating XLR 5 pin connectors

ELECTRICAL
Input voltage range: 100-240V AC, 50/60Hz
Power consumption: 280W

Power Input / Thru through IP20 rating PowerCON connectors

THERMAL

Cooling system: Silent fan
Operating ambient temperature range: 0 to 40 degree C
Max temperature of the external surface: 80 degree C
Safety protection against temperatures excesses

Total heat dissipation(calculated, +/-10%): 882.42 BTUs/hour

PHYSICAL

Materials: Die-cast aluminum
Available colors: Matt black
Mounting: Theater yoke
IP rating: IP20
Weight: 8.7 kg

APPROVALS

CE Compliant
